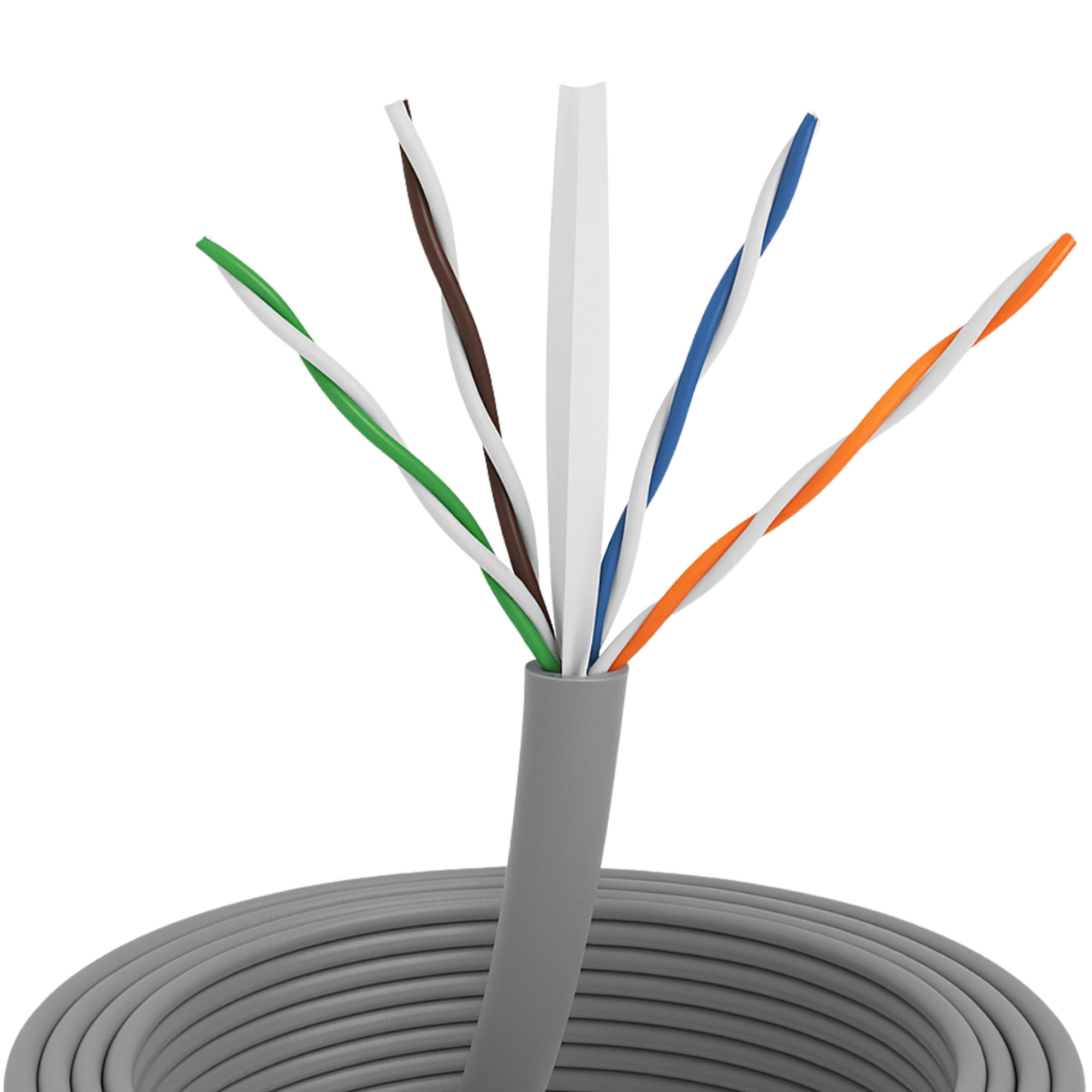

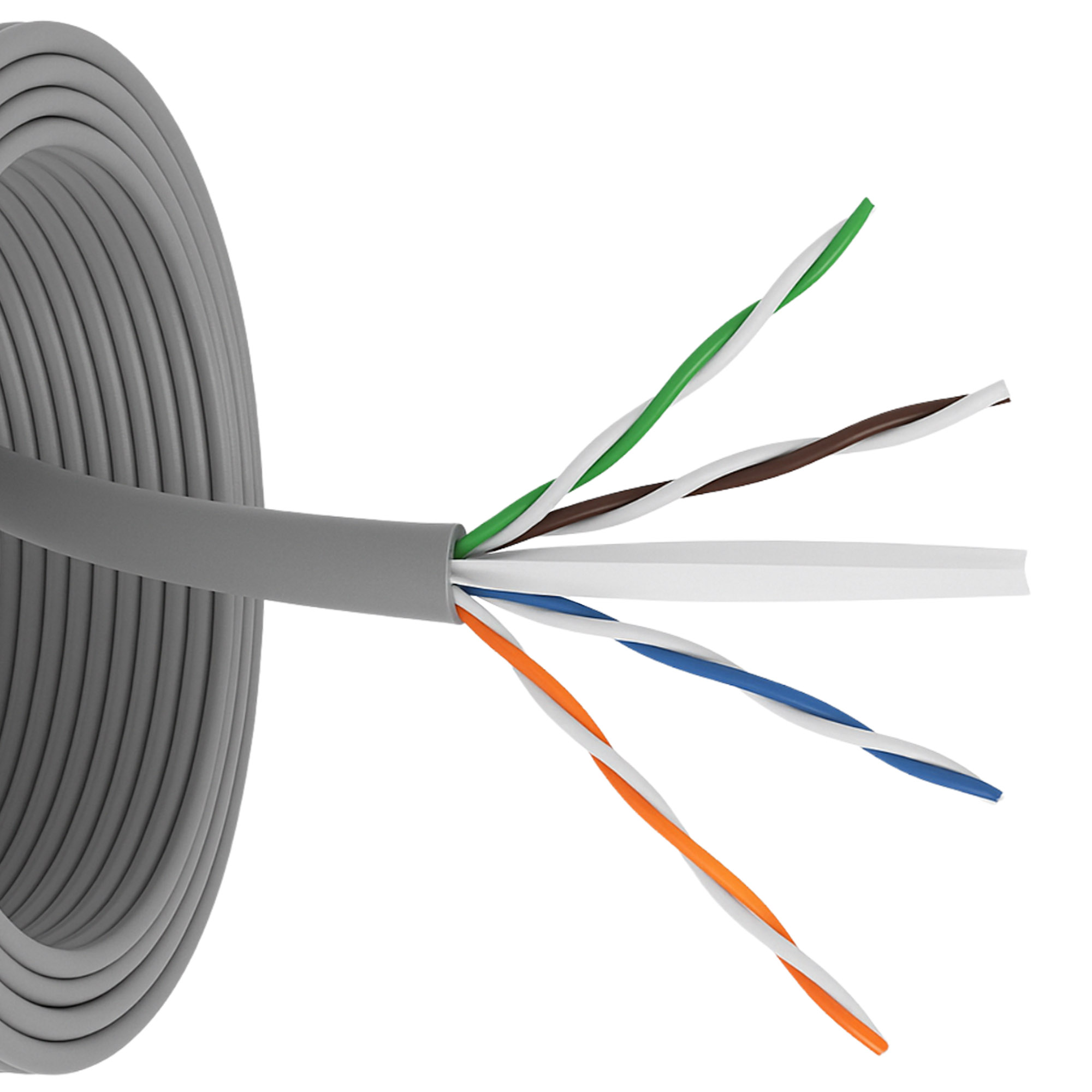

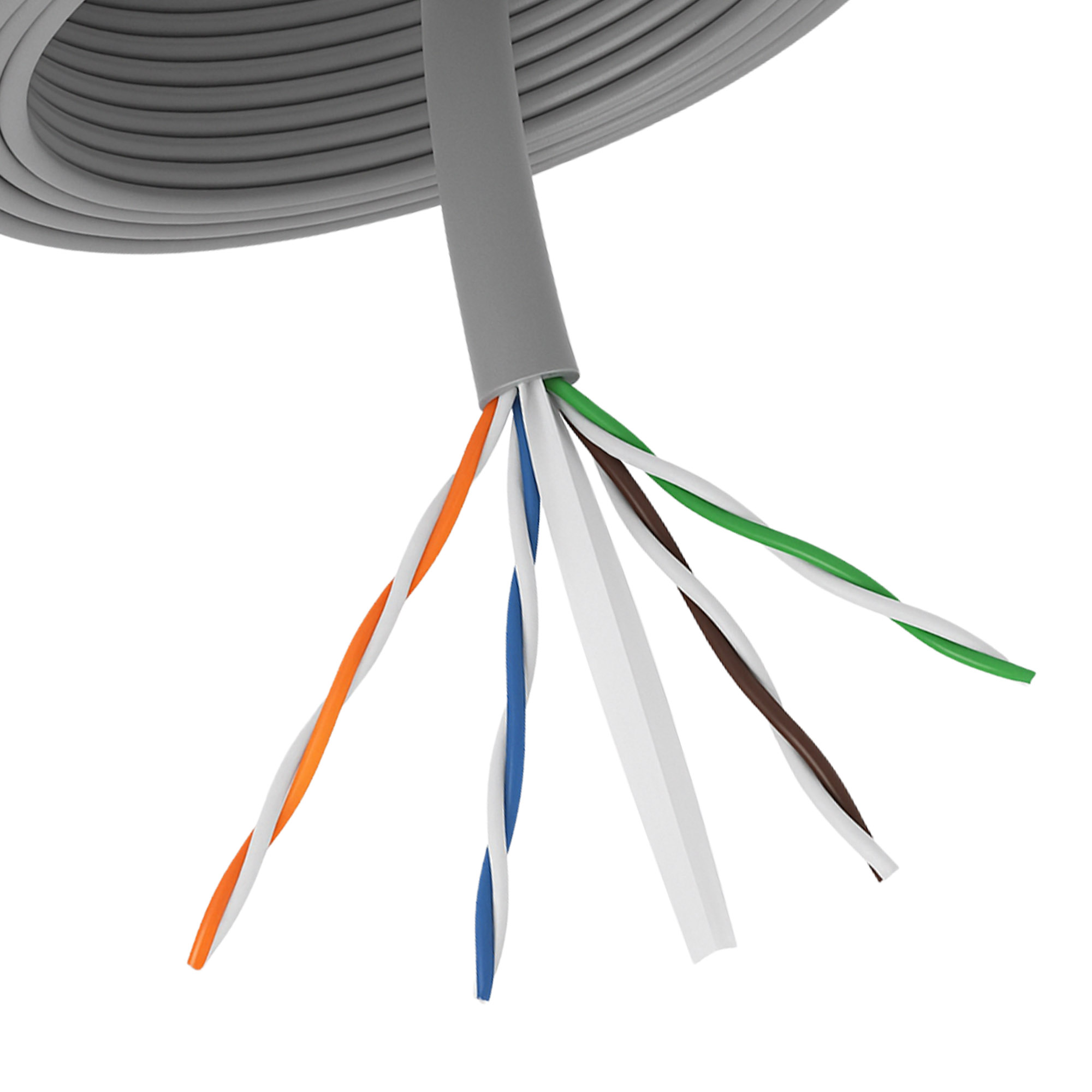

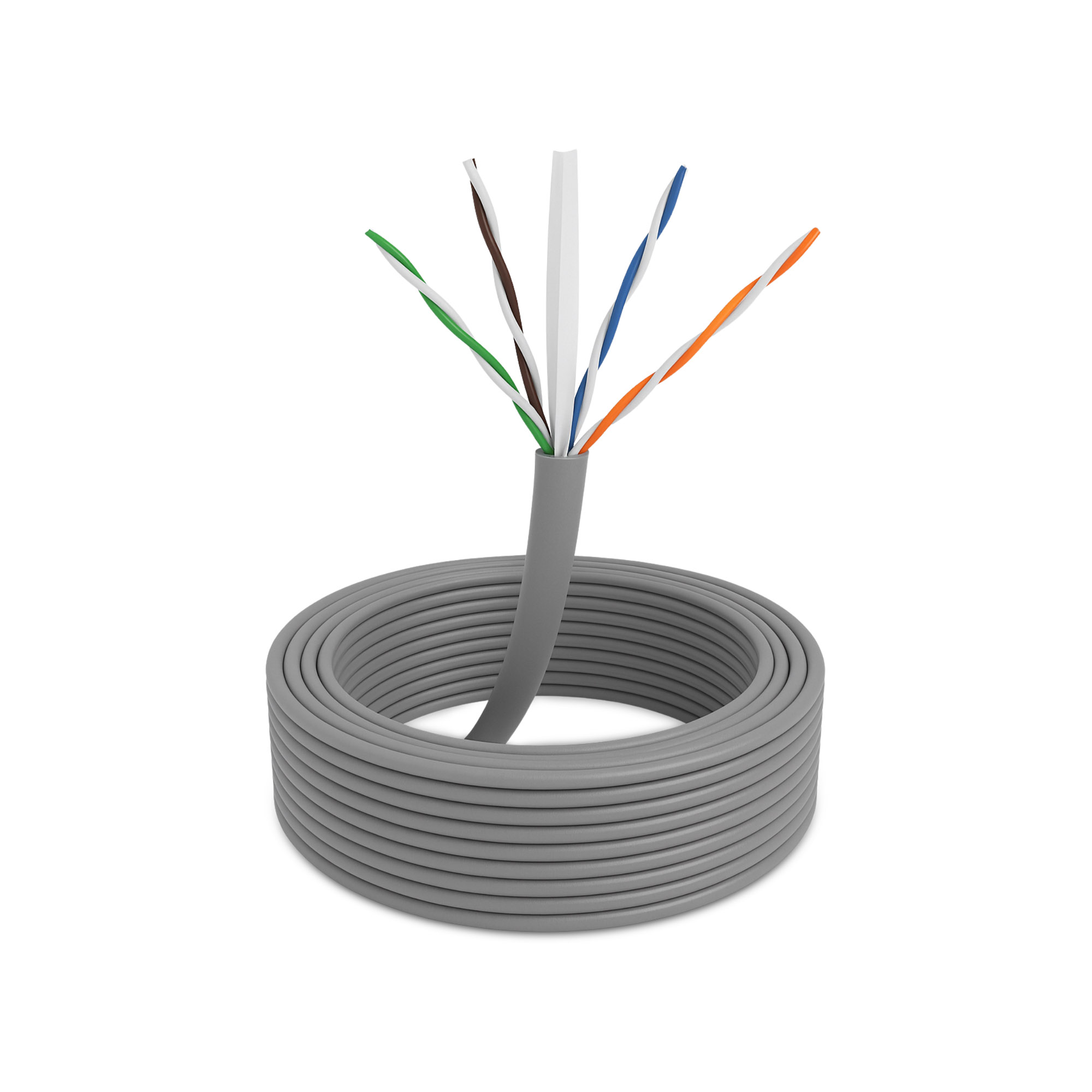

The NCR6305B Cat6 Network Cable Roll is engineered for high-speed, high-performance installations. Constructed from premium bare copper and meeting all Cat6 standards, this 305-meter roll delivers up to 10 Gbps speeds—perfect for voice, data, and video transmission in demanding network environments. Designed with bonded pairs to maintain optimal twist spacing, it ensures consistent impedance and minimal signal loss across long distances.
Network Cable Roll Cat6 l 305m l Bare Copper – NCR6305B
305m Cat6 bare-copper cable, 10Gbps, ANSI/TIA compliant; bonded pairs preserve twist for signal integrity.
| Cable OD Size | 6mm |
|---|---|
| Wire | 24AWG / 4P |
| Impedance | 100 ± 15 Ohms |
| Velocity of propagation | 65% |
| SRL | 220dB (1 – 250MHz) |
| Cable Length | 305M |
Data Sheet
